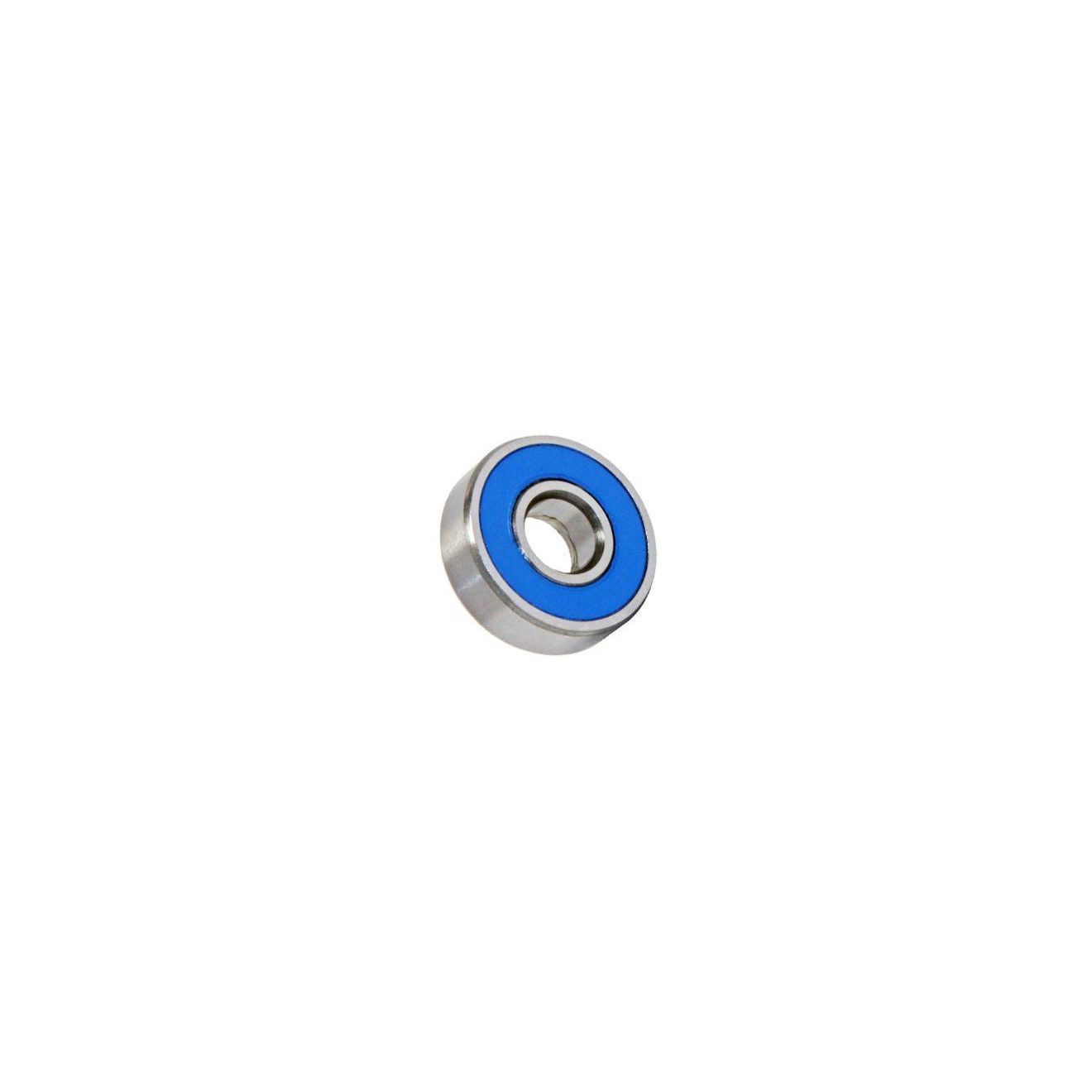

6902 2RS Rubber Sealed Hybrid Ceramic Stainless Steel Bearing 15mm X 28mm X 7mm (61902)

Hybrid ceramic ball bearings use a combination of traditional stainless steel rings precision matched with silicon nitride (ceramic) balls. In addition to being excellent electric insulators, hybrid bearings have a higher speed capability and will provide longer service life than all-steel bearings in most applications.

• Inside Diameter: 15mm



• Outside Diameter: 28mm



• Width: 7mm



• Seal Type: 2RS (Rubber Sealed)

Prevent Electrical Arcing

When electrical current passes across bearings, a washboard pattern appears on the raceways, along with a darkened grey appearance. Typical results include bearing surface damage, premature aging of the lubricant. The natural insulating properties of ceramic material eliminates this type of damage.

Lower Maintenance Costs

Extending the service life of a bearing without increasing maintenance cuts equipment operating costs. The initial cost of a hybrid bearing may be higher than a standard steel bearing, but the difference is quickly recovered in maintenance savings.

Increase Service Life

Because of the properties of ceramics, a hybrid bearing's service life can be up to 10 times that of a standard steel bearing, reducing the need for maintenance on your machine as well as the costly interruptions in production.

Extend Grease Life

Mrc hybrid bearings run cooler and can operate with thinner lubricant films than conventional bearings. The result? Less aging of the grease, longer relubrication intervals, and increased service life vs. Standard bearings in the same operating conditions.

Reduce Wear From Vibration

Equipment exposed to static vibration risks false brinelling, (erosion of the surfaces within the ball and raceway contacts), which can lead to spalling and premature failure. Lighter weight ceramic balls and dissimilar materials reduce the risk of false brinelling damage considerably.

Lower Operating Temperatures

Ceramic balls are only 40% as dense as steel balls, the centrifugal load that they generate is less and the internal bearing friction is lower. The lower density and friction enables cooler running under the same operating conditions, or even higher rotational speeds.

Reduce Wear From Contamination

Solid particle contaminants can create dents in bearing rolling surfaces and raised edges around those dents. This condition causes noise and premature wear as the steel balls roll over those surfaces. Harder ceramic balls smooths the surface roughness with no material removal, thereby reducing noise and wear while extending bearing service life.
