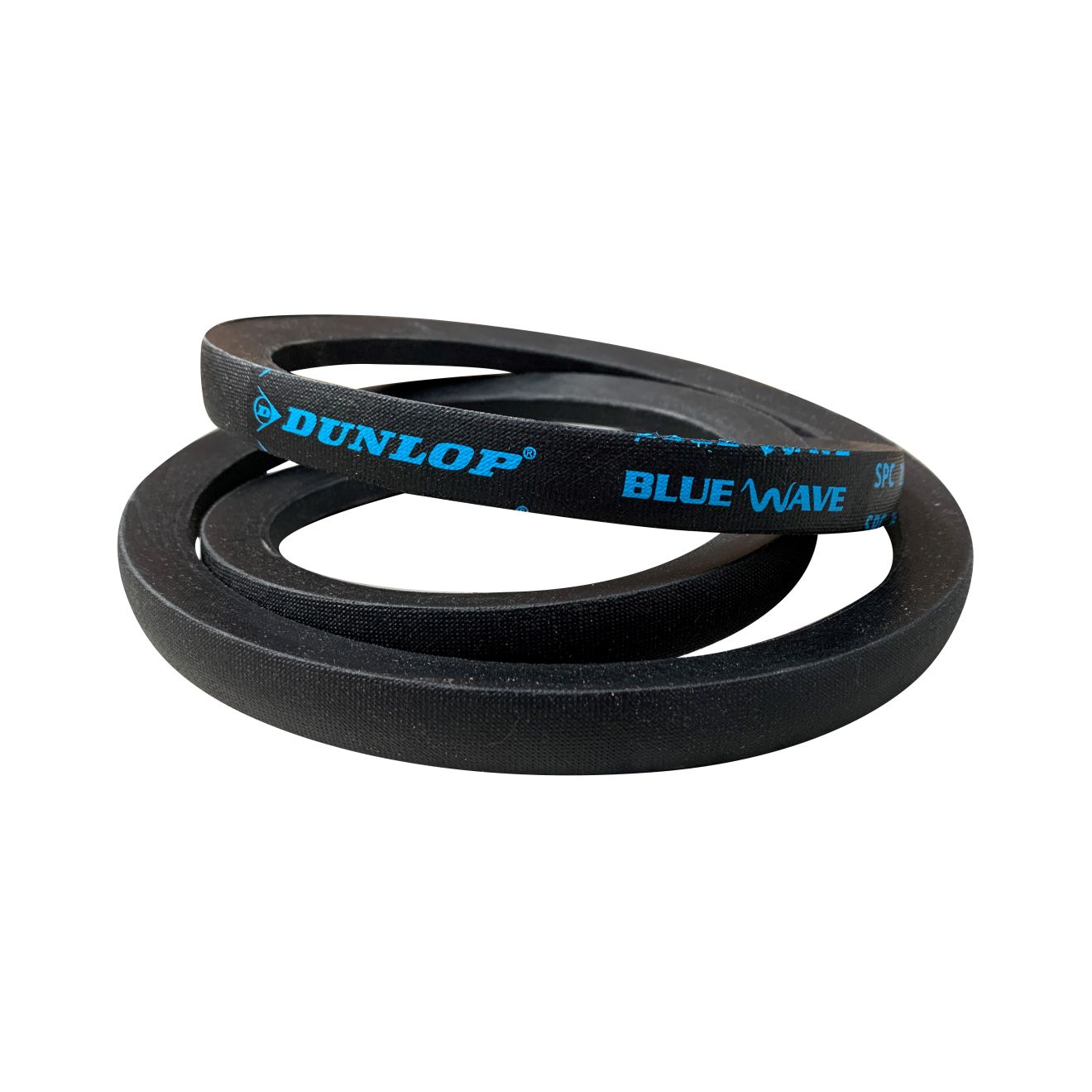

SPA1482 Dunlop Premium Heavy Duty SPA Section V Belt 13mm X 10mm

13mm wide, 10mm thick, Oil resistant & Anti-Static. Working temperature range -18c to +70c. Wrapped Belts are the first of the V-Belts to enter the power transmission scenario. The continued development of the product has enabled them to achieve power ratings considerably higher than originally expected. The compounds used to build up these belts are well chosen to match the stipulated power ratings, thus offering increased safety factor on critical drives. Uses the same pulleys as standard A belts, but transmits 20% more power.

• Inside Length: 1437mm

• Outside Length: 1500mm

• Belt Width: 13mm

• Belt Depth: 10mm

Benefits:

• 40% more power than standard black belts.

• With energy efficiency capability of up to 97%.

• Life expectancy in the region of 25,000 hours or almost three years continuous operation if used correctly.

• Made of premium Chloroprene lasting up to 3 times longer.

Dunlop Premium belts feature a multi-layer construction. A stronger and more durable polyester tension cord placed between layers of polychloroprene, with a rubber base that is wrapped in an abrasion resistant long-life fabric cover give a higher dynamic load and add flexibility which can overcome many causes of failure and inefficiency.
This advanced construction and improvement in component design and material enables the belt to accommodate heavy tension loads with minimal elongation, resulting in the delivery of up to 40% more power than traditional standard wrapped belts. With energy efficiency capability of up to 97%, assuming the drive has been correctly designed, there is a life expectancy in the region of 25,000 hours or almost three years continuous operation. These belts are made of premium Chloroprene lasting up to 3 times longer.
